SD6800BC

SINGLE STAGE PRIMARY SIDE REGULATION PFC CONTROLLER FOR LED DRIVER

Description Main feature Product specification classification Internal block diagram Relevant package outline drawing

The SD6800BC is a single stage primary side regulation (PSR) power factor correction (PFC) controller, specially designed for LED driver.

The Device adopts constant on time operation to achieve high power factor.

The SD6800BC provides accurate constant current control and operates in boundary conduction mode (BCM) with high efficiency.

The Device adopts primary side regulation eliminating the opto-couple, secondary feedback control and loop compensation for reducing design and cost.

The SD6800BC provides completed protections such as short LED protection, open LED protection and over temperature protection, etc.

Main feature

PSR Flyback topology
Boundary Conduction Mode
Low start currentw Leading edge blanking
Constant on-time control
VCC over voltage protection
VCC under voltage lockout
Over temperature protection
Cycle by cycle current limiting
Peak current compensation
Short LED protection and Open LED protection

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SD6800BC	SOP-8-225-1.27	Z8C	Halogen free	Tube
SD6800BCTR	SOP-8-225-1.27	Z8C	Halogen free	Tape & reel

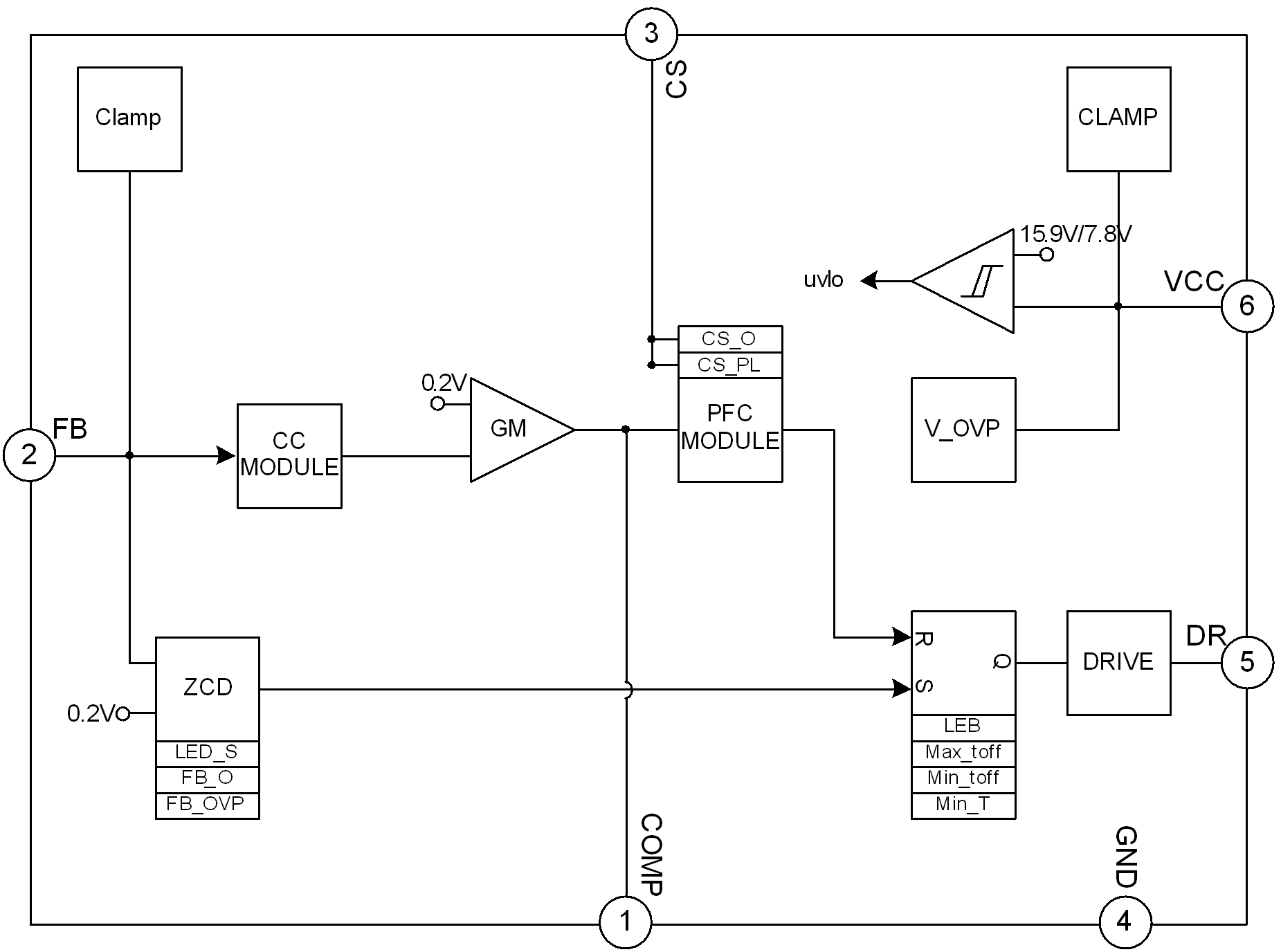

Block Diagram


Packages

SOP-8-225-1.27
